Safe and Durable to fresh water transfer-SS Well Riser Coupling

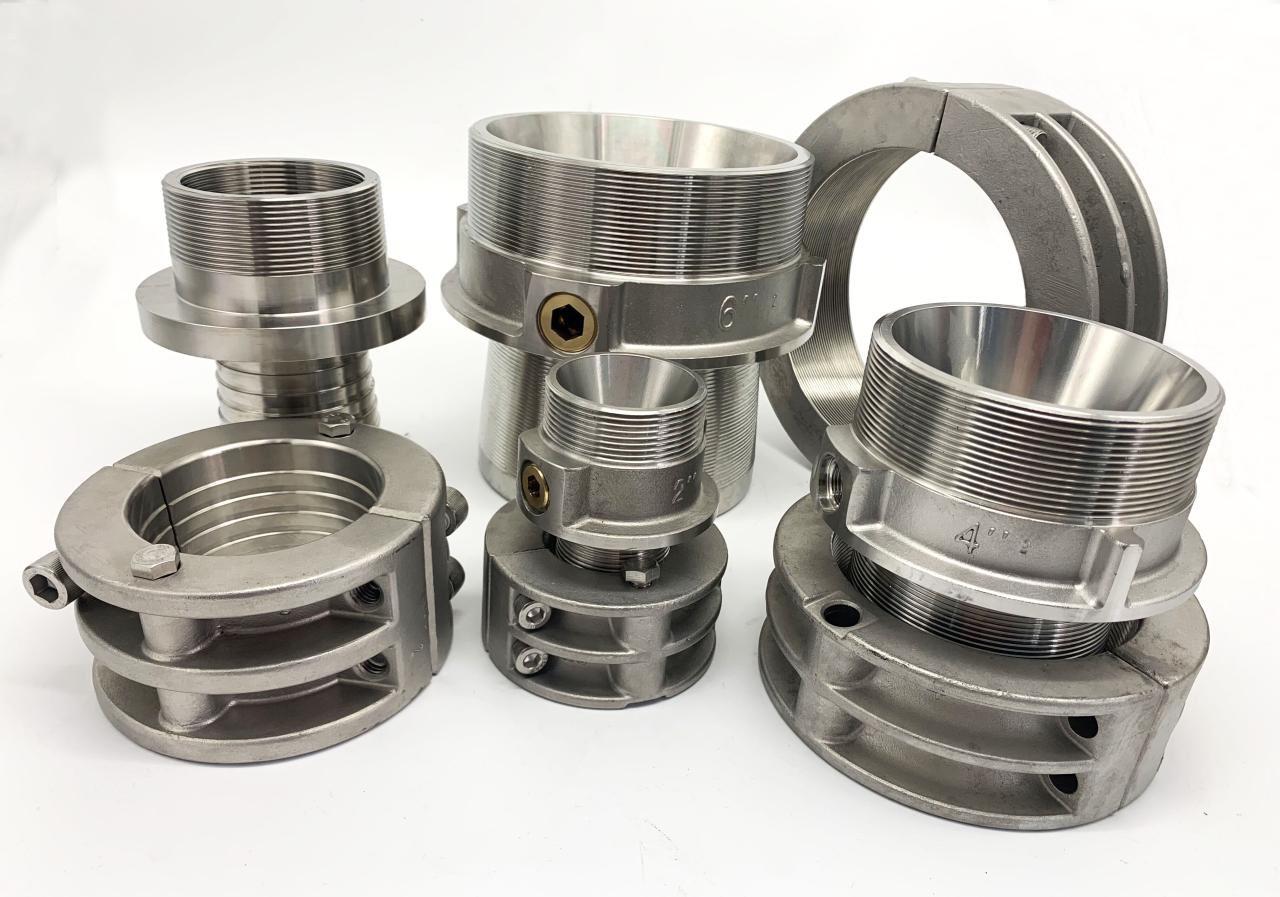

Stainless Steel Well Riser Hose Coupling

Part One: Introduction:

Large dimension hose couplings and fittings are very popular in world market in the past few years. Mainly is due to its large diameter and improved efficiency. For the Well raiser hose couplings, it is stainless steel, it has good performance on anti-rust and protect from pollution. Make it useflul on fresh water delivery ,ground water extraction and well monitoring operations in different industries such as agriculture, water supply, mining and quarry dewatering, marine and offshore industry, and in the geothermal industry.

Part Two: Well Riser Hose coupling Spec:

1. Body material: SS316/SS316L, according to ASTM A351 Standard

2. Screw: Brass

3. Bolt and Nuts: SS304

4. Manufacture method: Investment casting

5. Surface Treatment: pickled

6. Thread:GAS, BSPT, NPT

7. Rated pressure:

    1.5”-3” WP:30Bar

    4”-6” WP:20Bar

    8” WP:15Bar

    10” WP:10Bar

8. Temperature: -40℃ to 100℃

9. Connect method: Hose Nipple with segment clamp

10. Size available: 1.5”, 2”, 2.5”, 3”, 4”, 5", 6”, 8” ,10”

11. Clamp pieces: 1.5”-6”: 2pc  8”-10”:3pc

Part Three: Well Riser Hose Coupling Features:

a. Simple installation and easy handling.

b.Super flow characteristics.

c.Low risk of damage to pump.

d.No corrosion, and rust resistance

e.Long service life and low maintenance

Part Four: Well Riser Hose coupling Applications:

• Dewatering & drainage: Suction and delivery lines for site dewatering

• Water transfer (fresh water)

• Mining & tunneling

• Civil engineering projects,

• Emergency water supply, such as flood disaster and fire control

• Well risers and all water pumping

• Road construction:concrete form pouring

• Irrigation systems

• Well point &Pumps & pumping stations

More Details:

If you are interested in these stainless steel well riser coupling, please feel free to contact us. We have confidience to get your connections done. We have confidience to offer safer, repetable and valuable solutions for your hosese and equipment. Contact with us now!
